Connect a real coding agent end to end

This tutorial connects a real coding agent to a running Plexus the way you actually would: the admin connects the agent, one command installs it, the agent lists what it can do and calls it. Two agents, two shapes:

• Part 1 — Claude Code (compiled plugin). You connect an agent in the console (or one API call), copy the one-command install, and the agent gets a plugin with a plexus-<agentId> launcher and a compiled skill. It runs plexus-<agentId> list then invokes.
• Part 2 — Codex (AGENTS.md + shared CLI). You wire the plexus command onto Codex's PATH, hand the agent its one-time code to enroll, and drive it with codex exec.

The under-the-hood wire (enroll → handshake → grant → invoke) is an appendix at the end — you never touch it to connect an agent.

If you haven't booted a gateway yet, do Get running first (install Bun, bun run start).

The trust model in two credentials

• Connection-key (plx_live_…) — your admin credential. It gates the console and /admin/api/*. The agent never sees it.
• Per-agent PAT — the agent's durable credential, redeemed once from a one-time enrollment code (plx_enroll_…). The agent's command handles it internally — the agent never reads, builds, or presents a credential, and never hand-rolls HTTP. Reads on first-party / managed sources can be granted standing at connect time; writes, execute, and anything on an extension pend for a human. Full model: the security model.

---

Before you start

Boot a gateway. Run from the repo root:

# Terminal 1 — keep the gateway running (loopback only, 127.0.0.1:7077).
bun run start --vault ~/Documents/MyVault     # an Obsidian vault is handy for reads

You, the local human reaching the connection-key-authenticated console at http://127.0.0.1:7077/admin, are the admin and the approver. Everything below is done from there (or via the admin API, which needs the connection-key).

The Host header is mandatory

The gateway pins a Host/Origin guard to its bound port and runs it before auth on every endpoint (DNS-rebinding defense). A request whose Host is not 127.0.0.1:7077 is rejected with host_forbidden (403). Every curl below sends -H "Host: 127.0.0.1:7077".

---

Part 1 — Claude Code: connect → install → list → invoke

1. Connect the agent (admin)

In the console, open Connect an agent. Pick the Claude Code agent type, give the agent an id (e.g. my-cc), and select a starting cap-set — say obsidian.vault.read. Connecting does two things at once:

• mints a one-time enrollment code (plx_enroll_…, single-use, ~15 min), and
• grants the selected caps to this agent as standing grants — this is the human approval, done once, so those caps are callable without re-prompting.

The API equivalent (needs the connection-key — this is an admin action, not an agent one):

export KEY=$(cat ~/.plexus/connection-key)     # ADMIN credential — never given to the agent
curl -s -H "Host: 127.0.0.1:7077" -H "content-type: application/json" \
  -H "X-Plexus-Connection-Key: $KEY" \
  -X POST "http://127.0.0.1:7077/admin/api/agents/connect" \
  -d '{"agentId":"my-cc","agentType":"claude-code","capabilities":["obsidian.vault.read"]}'

2. Copy the one-command install

The console shows a copyable one-command install for the connected agent (served by GET /integration/:agentId, connection-key gated). It looks like:

curl -fsSL http://127.0.0.1:7077/integration/my-cc/install.sh | PLEXUS_ENROLL_CODE="plx_enroll_…" bash

The one-time code rides the command in an env var (never baked into a file); the installer lands it in a 0600 scratch file, redeems it for the agent's PAT, then deletes it. What gets installed is a Claude Code plugin compiled for this one agent: a plexus-my-cc launcher (its own bundled, version-pinned engine, never a bare global plexus) plus a compiled use-plexus skill.

3. The agent lists, then invokes

Once installed, the agent's entire interface is the launcher. Its subcommands:

plexus-my-cc list                                   # what can I call NOW vs what needs approval
plexus-my-cc obsidian.vault.read path=Projects/Plexus.md
plexus-my-cc obsidian.vault.read --input '{"path":"Projects/Plexus.md"}' --json

• enroll ran for you during install (redeem one-time code → durable PAT, stored locally). If the agent is ever unenrolled (fresh machine / reset credential), the command tells it to run plexus-my-cc enroll <code> — the only time a code is involved.
• list marks each capability callable-now (a standing grant) vs needs-approval. obsidian.vault.read is callable now because you granted it at connect time.
• <capabilityId> [args] invokes — positional args bind to the input schema in order, or key=value, or --input '<json>'. Add --json to parse the InvokeResponse; add --purpose "<one sentence>" to tell the owner why when a call may pend.

In a Claude Code session with the plugin active, asking "read my Obsidian note Projects/Plexus.md via Plexus" makes the compiled skill run exactly those commands and return the real note.

The launcher is the agent's complete and only interface

Never hand-roll HTTP, never guess auth. The compiled skill is a projection over the gateway's live, self-describing Floor; the enroll→PAT→handshake→token→invoke chain is templated inside the engine and never enters the agent's context. A stale skill can never exceed the Floor's live authz — worst case it references a revoked cap and the invoke just fails.

4. When a call needs approval

If the agent calls something you did not grant at connect time — any write / execute, or any extension capability even for a read — the command reports grant_pending_user. The agent relays the gateway-authored narration and asks you to approve it in the console (Approvals tab, where you pick a trust-window):

http://127.0.0.1:7077/admin

To broaden a connected agent's standing caps without a pend, grant more from the console (or re-run Connect an agent with a larger cap-set) — plexus-my-cc list then shows them callable-now.

---

Part 2 — drive a real codex agent against Plexus

Codex is not a compiled-plugin agent. It integrates via an AGENTS.md block + a shared plexus command on PATH, driven by codex exec. Plexus is not an MCP server (there is no /mcp wire), so there is nothing to put in Codex's config.toml.

B1. Wire Codex up + enroll

# From the repo root — symlinks bin/plexus onto PATH + appends the AGENTS.md block.
bash integrations/codex/setup.sh
#   (if it warns ~/.local/bin isn't on PATH, add it:  export PATH="$HOME/.local/bin:$PATH")

Then connect this agent and enroll it. Connecting a Codex agent is the same console flow as Part 1, but pick the Generic / other agent type — that delivers the one-time code as raw enrollment coordinates instead of a compiled plugin. Redeem it once:

plexus enroll plx_enroll_…        # once — stores THIS agent's PAT locally
plexus list                       # sanity-check: the caps you granted show callable-now

(Full setup — automatic vs manual, global vs per-project AGENTS.md — is in integrations/codex/setup.md.)

B2. Why --dangerously-bypass-approvals-and-sandbox

Codex sandboxes the commands it runs. The plexus command talks to the gateway over loopback HTTP (127.0.0.1). codex exec defaults to a read-only sandbox that blocks that loopback call, so Codex can't reach Plexus. For the session that drives Plexus, Codex has to be allowed to make the call. The blunt way is the flag:

codex exec --dangerously-bypass-approvals-and-sandbox "<task>"

The flag removes the sandbox so the agent can talk to a local service — use it only for automation you trust on a machine you own. (The narrower, safer alternative is to grant network access in your Codex sandbox config instead of removing it wholesale.) It's a Codex CLI flag, not a Plexus one; Plexus's own authz — standing grants plus the pending-approval flow — still applies to every call.

B3. A worked task — read my calendar / create a reminder

With the gateway running (boot it with PLEXUS_FAKE_APPLE=1 bun run start for the deterministic Apple fixtures and no macOS TCC prompts — see Expose a source):

codex exec --dangerously-bypass-approvals-and-sandbox \
  "Use the plexus command: run 'plexus list' to see what's available, read today's
   events with apple-calendar.events.list, then create a follow-up reminder for the
   first event with apple-reminders.reminders.create. Use --json."

Codex follows the discipline its AGENTS.md teaches — list, then invoke — and runs something like:

exec   plexus list --json                                              succeeded
         → apple-calendar.events.list (read, callable-now),
           apple-reminders.reminders.create (write, needs-approval) …
exec   plexus apple-calendar.events.list --input '{"start":"2026-06-25","end":"2026-06-26"}' --json
         → { "ok": true, "output": { "events": [ { "title": "Team sync", … } ] } }
exec   plexus apple-reminders.reminders.create --input '{"list":"Reminders","title":"Follow up on Team sync"}' --json

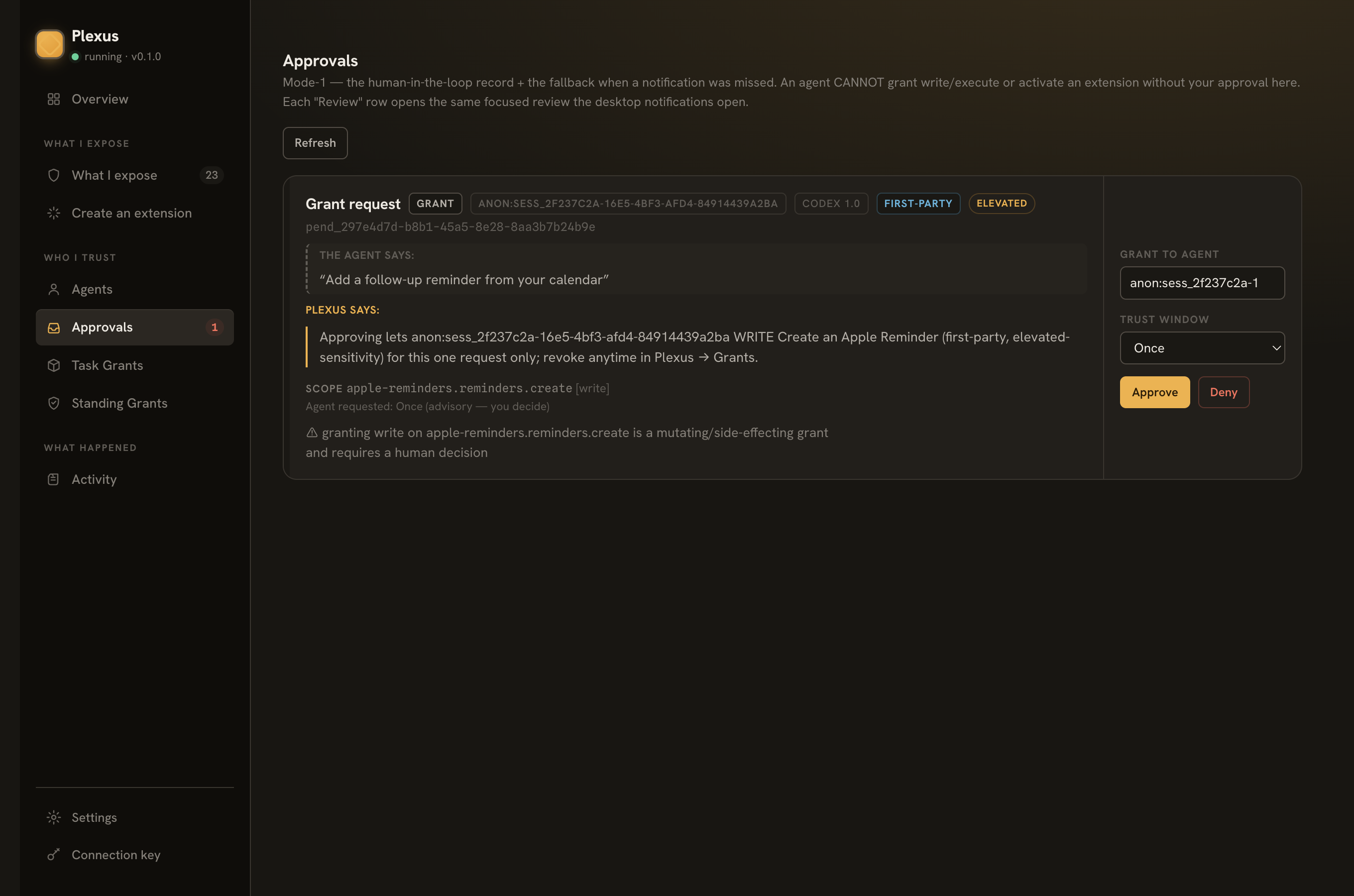

The write pends. apple-reminders.reminders.create is a write, so unless you granted it standing at connect time, the command prints a grant_pending_user notice and polls while telling you to approve it in /admin (Approvals tab + trust-window picker). Approve it; the command completes the invoke and Codex reports the created reminder. A pure read (apple-calendar.events.list) that you granted at connect time just works.

Gotchas

• macOS TCC (the first live Apple call prompts you). With PLEXUS_FAKE_APPLEunset on a real Mac, the Apple sources shell out to osascript/JXA and the first live use of each triggers the macOS TCC consent dialogs. If you deny, the call fails with a precise "enable it in System Settings" message. For a hermetic run with no TCC, set PLEXUS_FAKE_APPLE=1.
• osascript provider perf on huge lists — Calendar/Reminders through osascript is slow on very large stores. Scope your queries (a day/week window, a specific list).
• Codex's sandbox blocks loopback by default — re-read B2 if plexus list inside Codex fails with a network error while the same command works in your own shell.

---

Appendix — under the hood (the PAT wire)

You never touch this to connect an agent — the plexus command does it all. But this is exactly what it does on the wire (authoritative: cited file:line in the security model §2).

1. DISCOVER — GET /.well-known/plexus (unauthenticated). Gateway identity + a summary capability list + the auth advertisement (the enroll / handshake URLs).
2. ENROLL — POST /agents/enroll { "code": "plx_enroll_…" }. The code is the credential here; the connection-key is never accepted. On success it returns the durable PAT in plaintext once — the command stores it locally and it is never recoverable again:

   curl -s -H "Host: 127.0.0.1:7077" -H "content-type: application/json" \
     -X POST "http://127.0.0.1:7077/agents/enroll" \
     -d '{"code":"plx_enroll_…"}'          # → { "pat": "plx_agent_…", "agentId": "my-cc" }

3. HANDSHAKE — POST /link/handshake with Authorization: Bearer plx_agent_…. The PAT is verified and the session is bound to the real agentId it resolves to (a client can never self-assert another agent's identity). Returns a sessionId
   • the full manifest.
4. GRANT — PUT /grants with the X-Plexus-Session: <sessionId> header and { "grants": { "<capabilityId>": "allow" } }. A capability the admin already made standing short-circuits to a scoped token; otherwise the authorizer auto-allows a low-sensitivity first-party read or pends for the owner (grant_pending_user + pendingId; poll GET /grants/status?pendingId=… with the same session header).
5. INVOKE — POST /invoke with Authorization: Bearer <scoped-jwt> and { "id": "<capabilityId>", "input": { … } }. One result contract (ADR-017): { id, ok, output?, error?, auditId }; a denial is ok:false with a closed-union error.code.

The reference implementation of this exact chain is examples/min-agent/ — the bundled engine (tools/plexus-cli/plexus) is the sanctioned, Floor-verified version of it that every compiled plugin ships. Note what an agent is never told to do: read an on-disk key, present the connection-key at handshake, or mint its own token. The only advertised forward path is the audited, owner-approved one.

---

Where to go next

• Author an extension — give an agent a capability the gateway doesn't ship (e.g. a vault write), and let a coding agent author the manifest from a description.
• Expose a source — the bundled sources (Obsidian, Apple Calendar/Reminders, Things, cc-master): capability ids, grants, and prerequisites.
• The protocol — the frozen wire contract and ADRs (ADR-016 endpoint advertisement, ADR-017 /invoke, ADR-018 unified trust model).
